Continuous Integration (CI) Testing¶

Important

All CI checks must pass before a pull request can be merged.
The status (running and pass/fail) for all checks can be viewed by clicking the appropriate link in the checks section of a GitHub pull request.

The CI tools used by the RAJA project are:

Azure Pipelines runs builds and tests for Linux, Windows, and MacOS environments using recent versions of various compilers. While we do GPU builds for CUDA, HIP, and SYCL on Azure, RAJA tests are only run for CPU-only pipelines. Docker container images we use for the Linux testing are maintained in the RSE Ops Project. Please see the RAJA Azure DevOps project to learn more about our testing there.

GitLab instances in the Collaboration Zone (CZ) of the Livermore Computing (LC) Center run builds and tests on LC HPC platforms using software stacks (compilers, etc.) important to many RAJA user applications. Execution of LC GitLab CI on LC resources has restrictions, which are described below. If you have access to LC platforms, you can access information about LC GitLab CI

The tools integrate with the RAJA GitHub project and automatically run RAJA builds and tests when a PR is created and when changes are pushed to a PR branch.

The following sections describe basic elements of the operation of the CI tools.

GitLab CI¶

The GitLab CI instance used by the RAJA project lives in the Livermore Computing (LC) Collaboration Zone (CZ). It runs builds and tests using machine and compiler environments important to RAJA user applications at LLNL.

Constraints¶

Running GitLab CI on Livermore Computing (LC) platforms is constrained by LC security policies. The policies require that all members of a GitHub project be members of the LLNL GitHub organization and have two-factor authentication enabled on their GitHub accounts. When these requirements are satisfied, mirroring of a GitHub repo and triggering GitLab CI functionality from GitHub can be done. Otherwise, LC GitLab CI checks will not be run for a project. For a compliant LLNL GitHub project, such as RAJA, auto-mirroring of the GitHub repo on LC GitLab is done every 30 minutes or so, triggering builds and tests on new changes pushed to the RAJA GitHub project. If you have access to LC platforms, you can learn more about LC GitLab mirroring.

GitLab CI will not run for a PR branch on a fork of the RAJA repo. We manually manage contributions made on a fork of the RAJA repo using the procedure described in Contributing to RAJA.

GitLab CI (LC) Testing Workflow¶

The figure below shows the high-level steps in the RAJA GitLab CI testing process. The main steps, which we will discuss in more detail later, are:

A mirror of the RAJA GitHub repo in the RAJA LC CZ GitLab project is updated automatically after the RAJA develop or main branches are changed as well as when any PR branch in the RAJA GitHub project is changed. There may be a delay in the mirroring, since it is not synhronous with changes to the RAJA GitHub project.

GitLab launches CI test pipelines. While running, the execution and pass/fail status may be viewed and monitored in the GitLab CI GUI or in the RAJA GitHub project checks section for a PR.

For each platform and compiler combination, Spack builds RAJA dependencies and generates a configuration in the form of a CMake cache file, or host-config file.

A host-config file is passed to CMake, which configures a RAJA build space. Then, RAJA and its tests are compiled.

Next, the RAJA tests are run.

When test pipelines complete, results are reported in GitLab.

Lastly, GitLab reports to GitHub to show the status of checks there.

The main steps in the RAJA GitLab CI testing workflow are shown in the figure. This process is triggered when a developer makes a PR on the GitHub project or whenever changes are pushed to the source branch of a PR.

Next, we describe the roles that external projects and files in the RAJA repo play in the RAJA GitLab CI workflow.

GitLab CI Testing Dependencies (specific to LC CZ)¶

RAJA GitLab CI testing depends on several other projects that we share with other projects. These include

RADIUSS Shared CI, a centralized framework for software testing with GitLab CI on LC machines. The project is developed on GitHub and is mirrored to the LC CZ GitLab instance, where it is used by multiple projects.

Spack, a widely used multi-platform package manager that builds and installs software stacks.

Uberenv, a Python script that helps to automate the use of Spack and other tools for building third-party dependencies. Uberenv is a submodule in RAJA that lives in RAJA/scripts/uberenv/.

RADIUSS Spack Configs, a collection of build configurations used by Spack to generate host-config files for CMake. The build configurations are specific to LLNL LC platforms and are used by multiple projects. It also contains Spack packages for various projects, including RAJA. The RAJA Spack package is maintained in this project. RADIUSS Spack Configs is a submodule in RAJA that lives in RAJA/scripts/radiuss-spack-configs/.

The relationships among these dependencies in a project that uses them is illustrated in the RADIUSS Shared CI User Guide. The guide also describes how the framework works and how to set up a project to use it.

In the rest of the this section, we describe files in the RAJA repo that are used to configure and customize the shared CI framework specifically for the RAJA project.

GitLab CI Testing Files (specific to LC CZ)¶

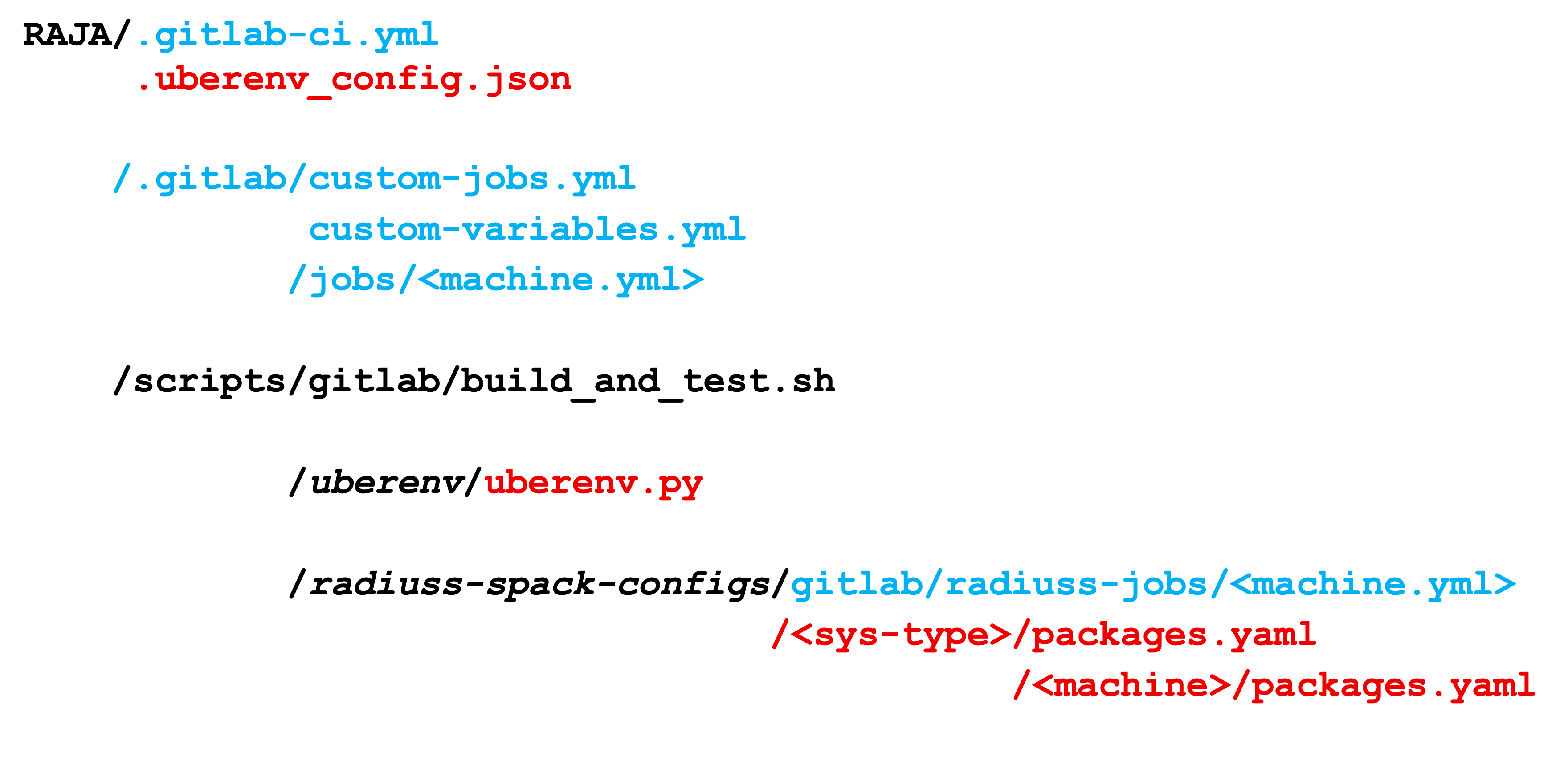

The following figure shows directories and files in the RAJA project that support LC GitLab CI testing.

The figure shows directories and files in the RAJA repo that support GitLab CI testing. Files in blue are specific to RAJA and are maintained in the RAJA repo. Red directories and files are in Git submodules that are shared and maintained with other projects.

Briefly, these files play the following roles in our GitLab CI testing:

The RAJA/.gitlab-ci.yml file is the root file for GitLab CI configuration. We place jobs is small pipelines described by separate files that are included by this one. Global variables can also be defined here.

The .uberenv_config.json file defines the Spack version we use, where Spack packages live, etc.

Files in the RAJA/.gitlab directory define test pipelines that RAJA subscribes to an which are defined in the RADIUSS Shared CI project, as well as RAJA-specific jobs, and any job customization that we use, such as job time limits, etc. These files are customizations of templates provided by RADIUSS Shared CI.

The RAJA/scripts/gitlab/build_and_test.sh file defines the RAJA build and test process and commands that are run during it.

In the following sections, we discuss how these files are used in the steps of the RAJA GitLab CI testing process summarized above.

Launching CI pipelines (step 2)¶

In step 2 of the diagram above, GitLab launches RAJA test pipelines. The RAJA/.gitlab-ci.yml file contains high-level testing information that applies to all RAJA GitLab CI testing pipelines. This includes

GitLab pipeline variables, such as project name, service user account name, etc.

High-level pipeline stages for build and test, multi-project testing, etc.

Build and test sub-pipelines. Note that this is where the connection is made to the RADIUSS Shared CI project (and version on the LC CZ GitLab instance) and to files in the RAJA/.gitlab directory that define the Spack specs for build configurations that are run on each machine on which RAJA tests are run.

Cross-project test pipelines, which are triggered when testing certain RAJA branches, mainly the develop branch.

CI subscribed pipelines, which are defined in the RADIUSS Shared CI project.

Important

Variables that define how resources are allocated and job time limits for LC machines that are used to run RAJA CI are defined in the RAJA/.gilab/custom-jobs-and-variables.yml file.

Each job that is run is defined by a Spack spec in one of two places, depending on whether it is shared with other projects or it is specific to RAJA. The shared jobs are defined in files named <MACHINE>-build-and-test.yml in the top-level directory of the RADIUSS Shared CI Project. RAJA-specific jobs are defined in RAJA/.gitlab/<MACHINE>-build-and-test-extra.yml files.

Each shared job will be run as-is unless it is overridden in the RAJA ‘extra’ file for the corresponding machine. For example, a shared job for the LC ruby machine may appear in the RADIUSS Shared CI file ruby-build-and-test.yml as:

gcc_8_1_0:
  variables:
    SPEC: "${PROJECT_RUBY_VARIANTS} %gcc@8.1.0 ${PROJECT_RUBY_DEPS}"
  extends: .build_and_test_on_ruby

and then may be overridden in the RAJA/.gitlab/ruby-build-and-test-extra.yml file as:

gcc_8_1_0:
  variables:
    SPEC: " ${PROJECT_RUBY_VARIANTS} %gcc@8.1.0 ${PROJECT_RUBY_DEPS}"
    RUBY_BUILD_AND_TEST_JOB_ALLOC: "--time=60 --nodes=1"
  extends: .build_and_test_on_ruby

In this example, the Spack build spec is the same, but the job is configured with a timeout limit and number of nodes appropriate for RAJA testing.

Important

A shared job override must use the same job label as the shared job defined in the RADIUSS Shared CI project.

RAJA-specific jobs whose configurations are not shared with other projects are also defined in the RAJA/.gitlab/<MACHINE>-build-and-test-extra.yml files. For example:

clang_10_0_1_gcc_8_3_1_desul_atomics:
  variables:
    SPEC: " ~shared +openmp +tests +desul %clang@10.0.1 cxxflags=--gcc-toolchain=/usr/tce/packages/gcc/gcc-8.3.1 cflags=--gcc-toolchain=/usr/tce/packages/gcc/gcc-8.3.1"
  extends: .build_and_test_on_ruby

defines a RAJA job with desul atomics enabled to be run on the ruby machine.

Important

Each base compiler configuration that is used in GitLab CI testing must have a Spack spec defined for it in the appropriate file for the machine that it will be tested on in the RADIUSS Spack Configs project.

Running a CI build and test pipeline (steps 3, 4, 5, 6)¶

The RAJA/scripts/gitlab/build_and_test.sh file defines the steps executed for each build and test pipeline as well as information that will appear in the log output for each step.

After some basic set up, the script invokes the RAJA/scripts/uberenv/uberenv.py Python script that drives Spack to generate host-config files:

...

python3 scripts/uberenv/uberenv.py --spec="${spec}" ${prefix_opt}

...

Project specific settings related to which Spack version to use, where Spack packages live, etc. are located in the RAJA/.uberenv_config.json file.

The Uberenv Python script invokes Spack to generate a CMake host-config file containing a RAJA build specification (step 3). To generate a host-config file, Spack uses the packages and specs maintained in the RADIUSS Spack Configs project, plus RAJA-specific specs defined in files in the RAJA/.gitlab directory, as described earlier.

Note

Please see Spack-Generated Host-Config Files for more information about how to manually generate host-config files and use them for local debugging.

After the host-config file is generated, the RAJA/scripts/gitlab/build_and_test.sh script creates a build space directory and runs CMake in it, passing the host-config (cache) file. Then, it builds the RAJA code and tests (step 4):

...

build_dir="${build_root}/build_${hostconfig//.cmake/}"
install_dir="${build_root}/install_${hostconfig//.cmake/}"

...

date
echo "~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~"
echo "~~~~~ Host-config: ${hostconfig_path}"
echo "~~~~~ Build Dir:   ${build_dir}"
echo "~~~~~ Project Dir: ${project_dir}"
echo "~~~~~ Install Dir: ${install_dir}"
echo "~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~"
echo ""
echo "~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~"
echo "~~~~~ Building RAJA"
echo "~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~"

..

rm -rf ${build_dir} 2>/dev/null
mkdir -p ${build_dir} && cd ${build_dir}

...

$cmake_exe \
    -C ${hostconfig_path} \
    -DCMAKE_INSTALL_PREFIX=${install_dir} \
    ${project_dir}

...

echo "~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~"
echo "~~~~~ RAJA Built"
echo "~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~"
date

Next, it runs the tests (step 5):

echo "~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~"
echo "~~~~~ Testing RAJA"
echo "~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~"

...

cd ${build_dir}

...

ctest --output-on-failure -T test 2>&1 | tee tests_output.txt

...

echo "~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~"
echo "~~~~~ RAJA Tests Complete"
echo "~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~"
date

Lastly, test results are collected in a JUnit XML file that GitLab uses for reporting the results in its GUI (step 6). This is done by the RADIUSS Shared CI Framework

The commands shown here intermingle with other commands that emit messages, timing information for various operations, etc. which appear in a log file that can be viewed in the GitLab GUI.

Azure Pipelines CI¶

The Azure Pipelines tool builds and tests for Linux, Windows, and MacOS environments. While we do builds for CUDA, HIP, and SYCL RAJA back-ends in the Azure Linux environment, RAJA tests are only run for CPU-only pipelines.

Azure Pipelines Testing Workflow¶

The Azure Pipelines testing workflow for RAJA is much simpler than the GitLab testing process described above.

The test jobs we run for each OS environment are specified in the RAJA/azure-pipelines.yml file. This file defines the job steps, commands, compilers, etc. for each OS environment in the associated - job: section. A summary of the configurations we build are:

Windows. The - job: Windows Windows section contains information for the Windows test builds. For example, we build and test RAJA as a static and shared library. This is indicated in the Windows strategy section:
strategy:
  matrix:
    shared:
      ...
    static:
      ...
We use the Windows/compiler image provided by the Azure application indicated the pool section; for example:
pool:
  vmImage: 'windows-2019'
MacOS. The - job: Mac section contains information for Mac test builds. For example, we build RAJA using the the MacOS/compiler image provided by the Azure application indicated in the pool section; for example:
pool:
  vmImage: 'macOS-latest'
Linux. The - job: Docker section contains information for Linux test builds. We build and test RAJA using Docker container images generated with recent versions of various compilers. The RAJA project shares these images with other open-source LLNL RADIUSS projects and they are maintained in the RES-Ops Docker project on GitHub. The builds we do at any point in time are located in the strategy block:
strategy:
  matrix:
    gccX:
      docker_target: ...
    ...
    clangY:
      docker_target: ...
    ...
    nvccZ:
      docker_target: ...

    ...
The Linux OS the docker images are run on is indicated in the pool section; for example:
pool:
  vmImage: 'ubuntu-latest'

Docker Builds¶

For each Linux/Docker pipeline, the base container images, CMake, build, and test commands are located in RAJA/Dockerfile.

The base container images are built and maintained through the RSE-Ops Docker project. A table of the most up-to-date containers can be found here. These images are rebuilt regularly ensuring that we have the most up to date builds of each container and compiler.

Note

Please see Reproducing Docker Builds Locally for more information about reproducing Docker builds locally for debugging purposes.
